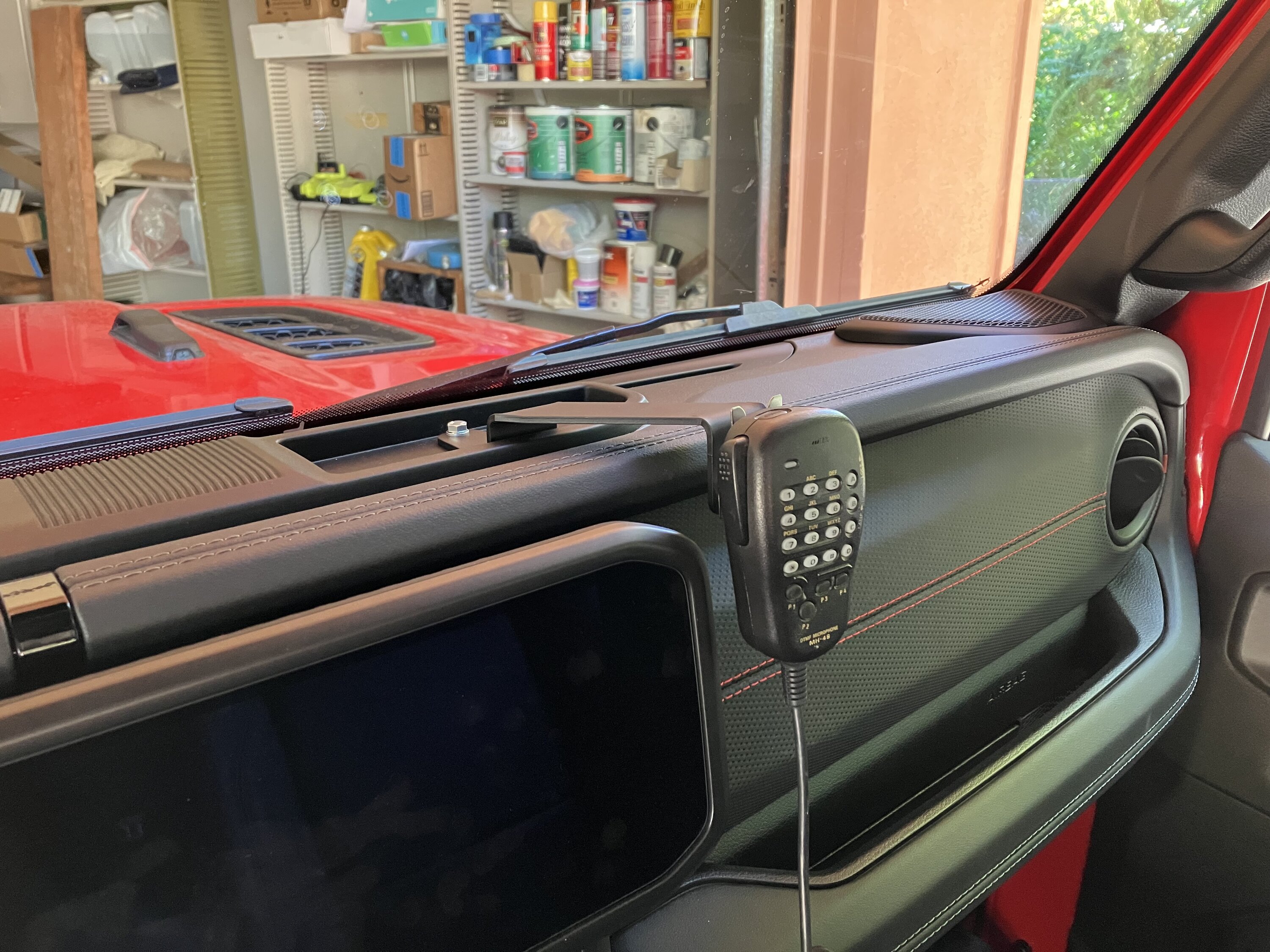

Holds a microphone to the right of the display. 2024 vehicles only.

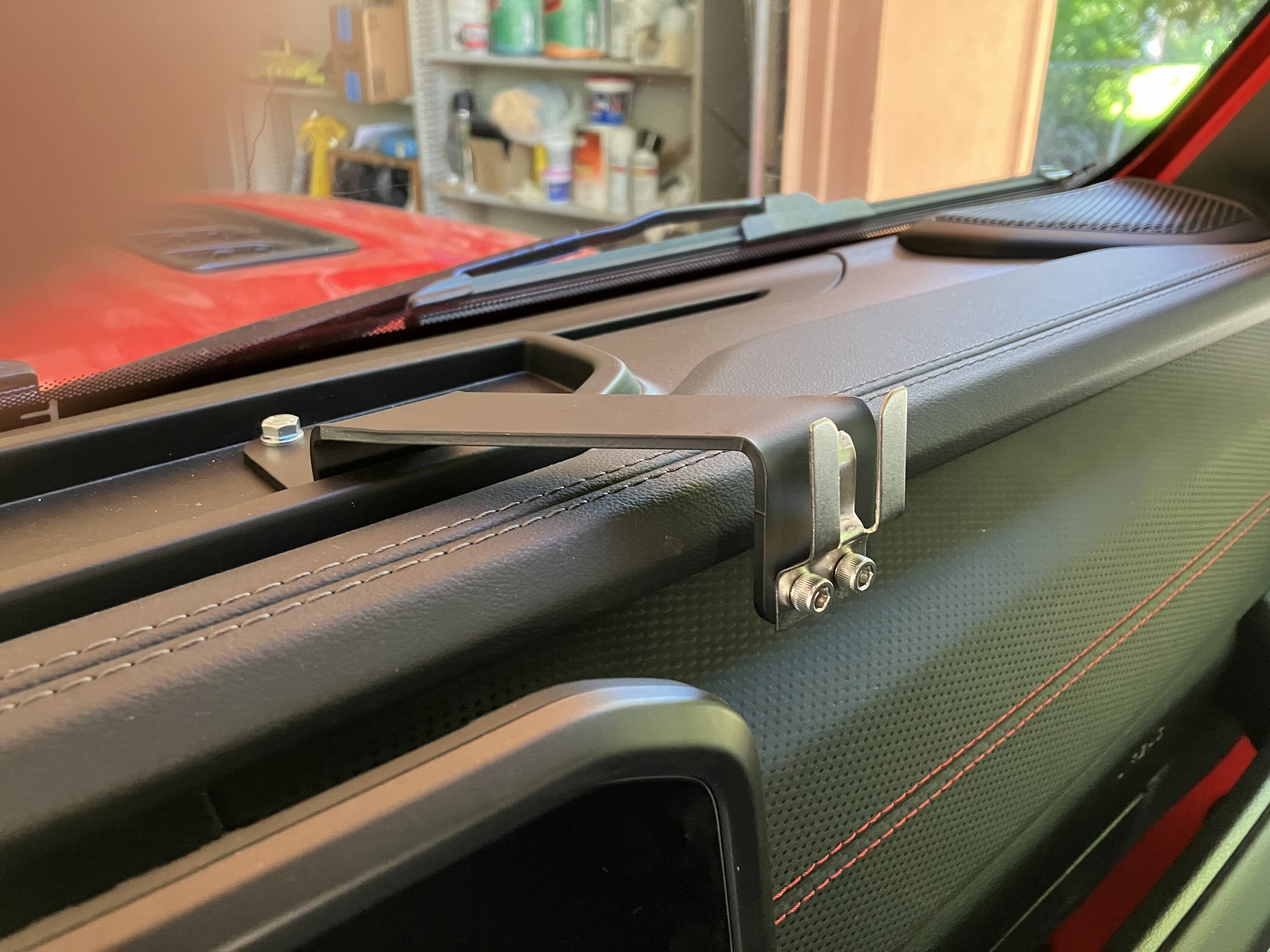

The 2024 dash to two AMPS mounts. They are 30mm wide x 38mm deep and use a M5 bolt. This bracket bolts to the right hand AMPS mount.
CAD Files
Construction
0.125" 304 stainless, powder coated, bend 1 90 degrees up, bend 2 90 degrees down, bend 3 90 degrees down
Mount holes M5x0.80. Mic holes 0.150"
