This bracket accepts a 1" wide strap that normally would pass around the roll bar. On the 2024 JL any strap over the roll bar would affect the curtain air bags.
The bracket fits any of the existing holes (two per door opening).
CAD

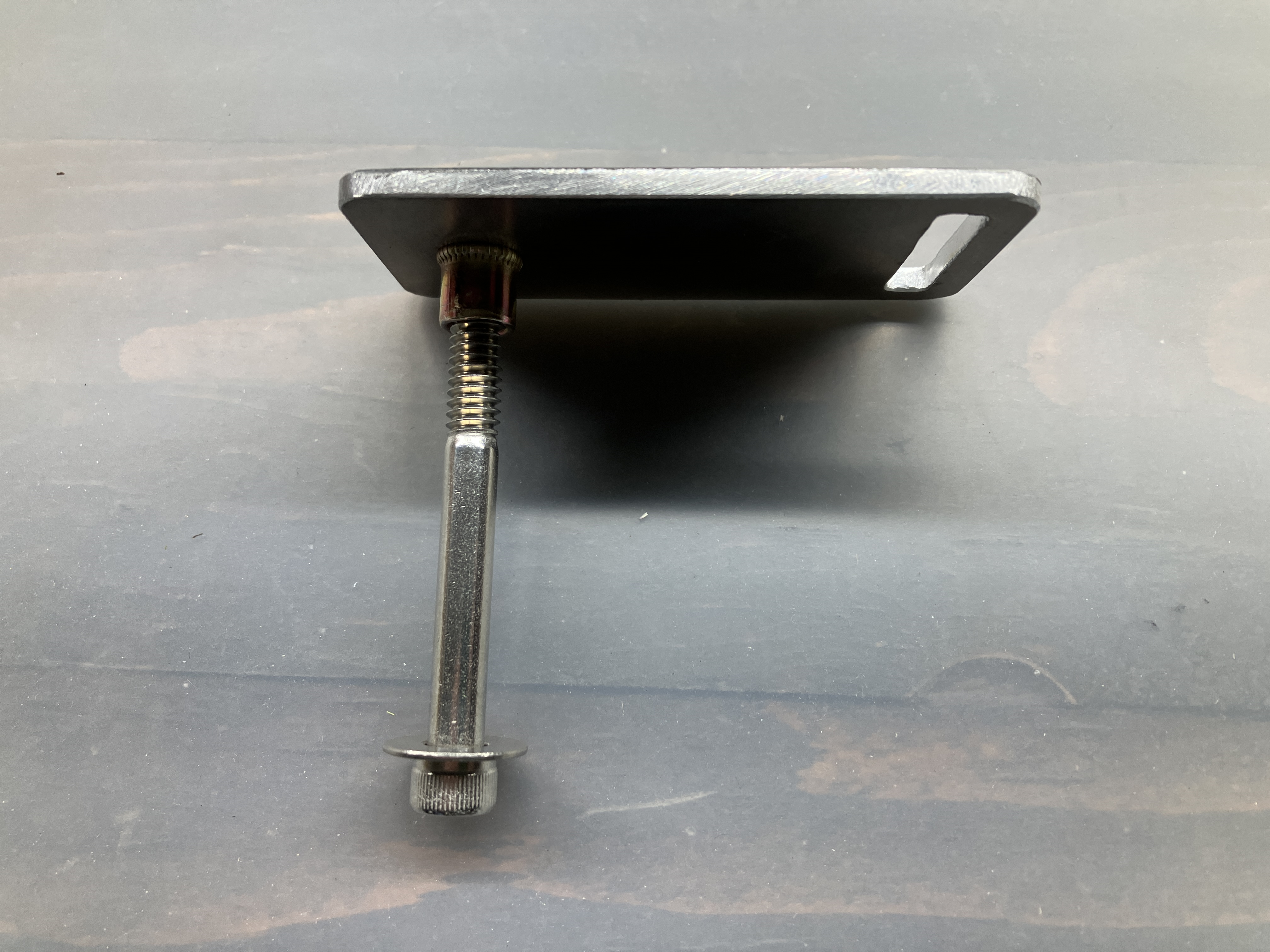

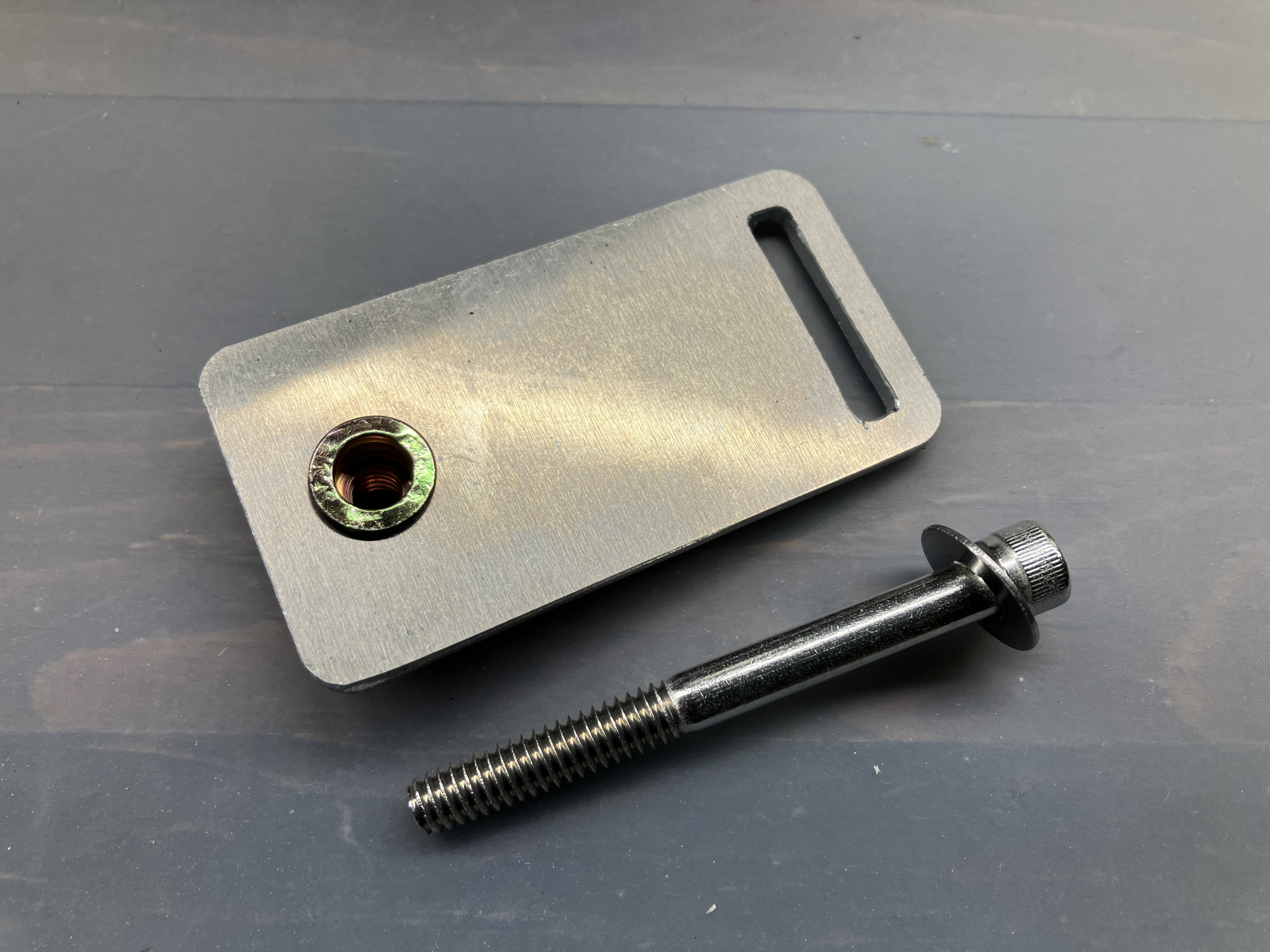

Construction
- Bolt 1/4-20 x 2-1/2" socket cap screw stainless steel
- Washer 1/4" x 5/8" stainless steel
- Rivet nut 1/4-20
- Bracket 0.125" 6061 Aluminum https://sendcutsend.com $5
The rivet nuts can be simple squeezed in a vice - you don't need a rivnut tool.
