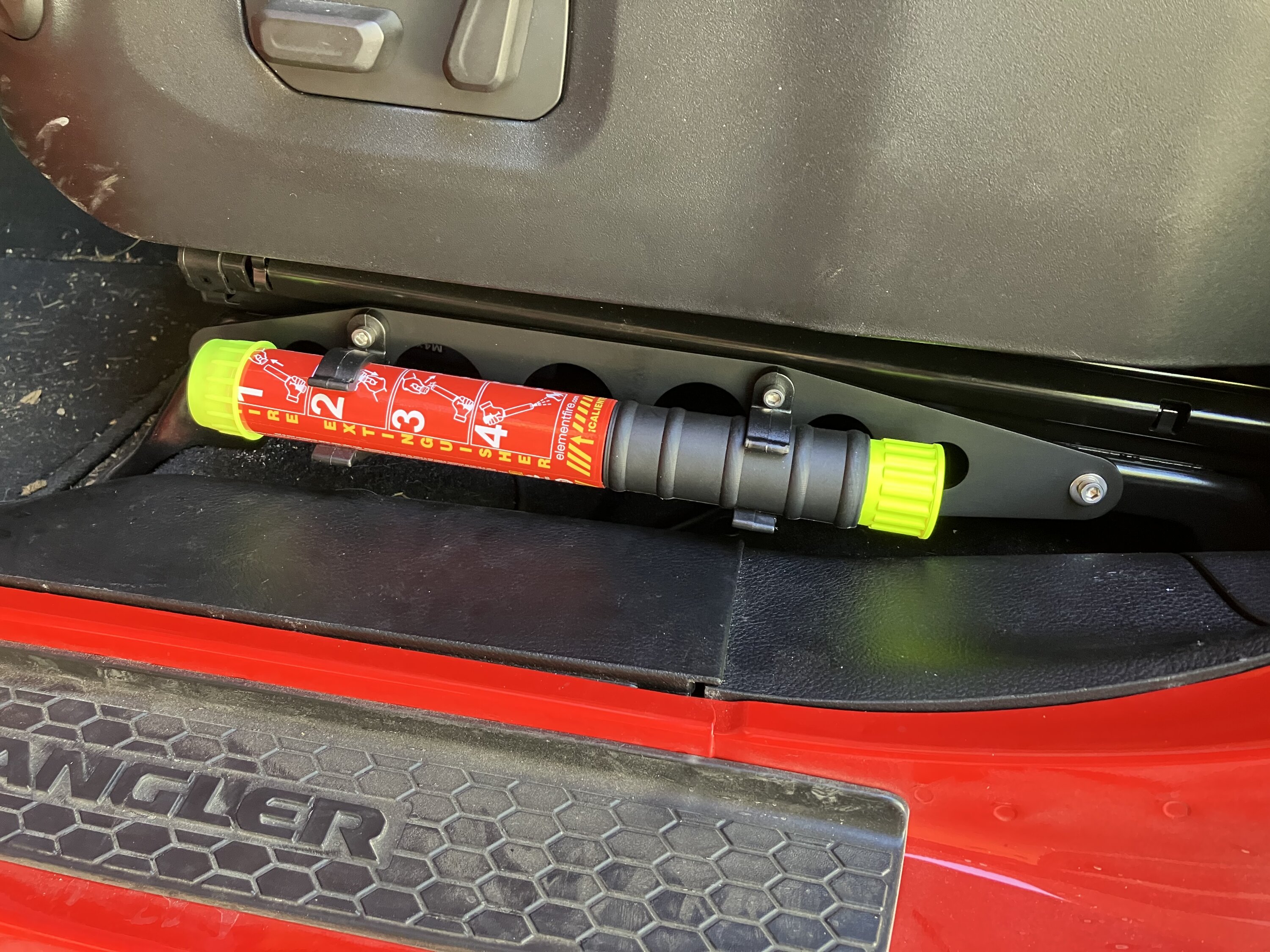

Seat mounted fire extingusher bracket

This allows the attachment of an Element E50 or E100 fire extinguisher on the front seat (either side). 2024 power seats only.

The seat needs two holes tapped

0.125" 6061 T6 aluminum, powder coated, middle 4 holes tapped to 10-32

2 x clips for extinguisher

4 x socket head 10-32 1/2" for clips

2 x socket head 10-32 7/8"

2 x #10 (3/16" ID) spacers 3/8" long

2 x #10 washers
